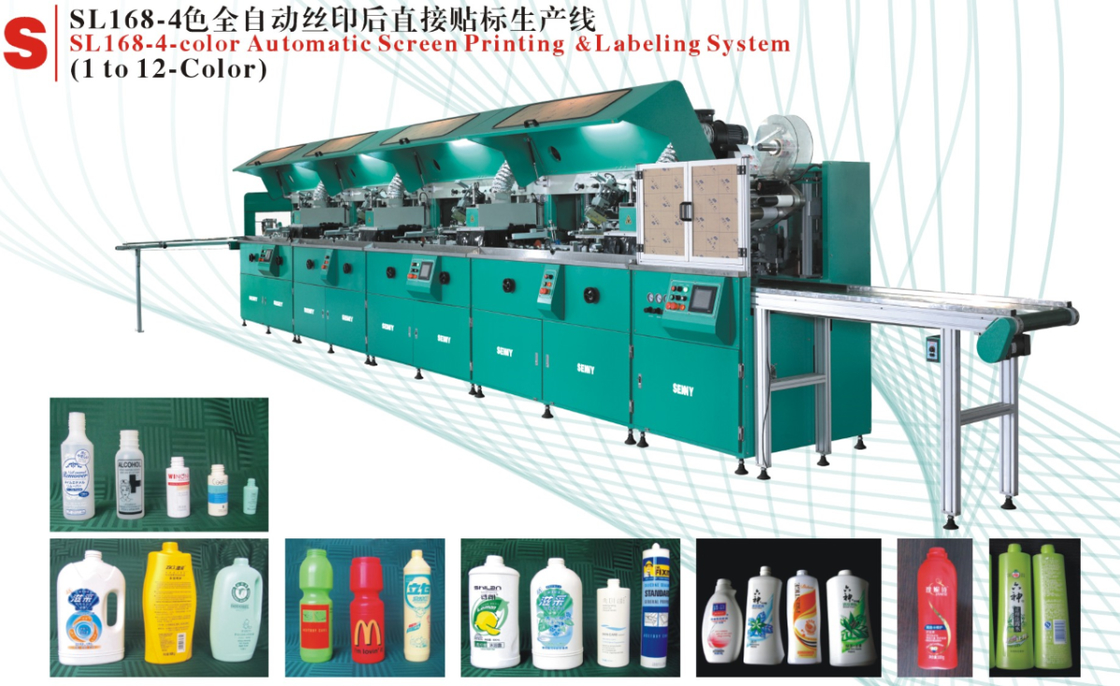

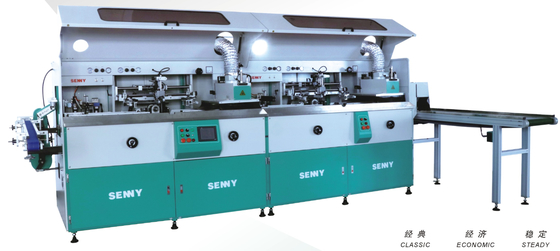

Fully Automatic 4 Color Screen Printing Machine CE Certified
Datos del producto:
| Lugar de origen: | Dongguan China |
| Nombre de la marca: | SENNY |
| Certificación: | CE |
| Número de modelo: | SL1688 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 por ciento |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Embalaje de madera contrachapada |
| Tiempo de entrega: | 45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 10 PC/mes |
|
Información detallada |
|||
| Grado automático: | Totalmente automático | Colores impresos: | 4 colores |
|---|---|---|---|
| Garantía: | 1 año | Tipo de placa: | Impresora de pantalla |
| Calidad de impresión: | Alta durabilidad | Servicios postventa: | Vídeo o en línea |
| Destacar: | Impresora de pantalla de botella certificada de CE, 4 colores y servicio de servicio de control digi | ||
| Resaltar: | 4 color automatic screen printing machine,fully automatic labeling machine,screen printing machine with warranty |
||
Descripción de producto
Machine Features

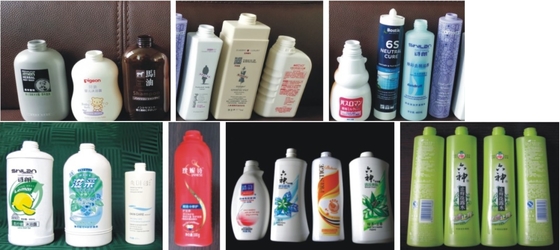

- The machine is suitable for screen printing of various colors of UV ink, hot stamping, labeling and other decorations on round, oval, square and other shapes of plastic bottles.
- The machine has perfect transmission design, stable running, fast changeover, easy operation and it meets CE certification.
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- The machine uses a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
- The standard configuration of the machine is a screen printing and UV curing module, and the screen printing function can be selected to be interchangeable with hot stamping or labeling functions.
- The machine can be chosen to connect with independent hot stamping, labeling, quality inspection and other modules to combine into a multi-functional printing machine.
Optional Configuration
- Plasma surface treatment function •Hot stamping function. •Labeling function. •LED-UV curing function
Technical Parameters
| Model Machine | SL1666 | SL1688 |
|
Printing Speed
|
up to 85pcs/min | up to 85pcs/min |
|
Round Bottle Diameter
|
20-100mm | 20-100mm |
|
Oval Bottle Radius
|
25-250mm | |
|
Oval/Flat Bottle Width
|
20-130mm | |
|
Bottle Height
|
50–300mm |
50–300mm
|
| Max Length | 300mm | 300mm |
| Max Hight | 250mm | 250mm |
Printing your vision
Quiere saber más detalles sobre este producto
