High Speed Fully Automatic Screen Printing Machine with UV-LED System and Customizable Size
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Senny |
| Certificación: | CE SGS |
| Número de modelo: | El número de la autoridad competente es: |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 por ciento |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Paquete de madera contrachapada |
| Tiempo de entrega: | un mes |
| Condiciones de pago: | T/T, L/C |
| Capacidad de la fuente: | 15pcs/month |
|
Información detallada |
|||
| Sistema de control: | Control del servomotor | Colores impresos: | 3 colores |
|---|---|---|---|
| Durabilidad de impresión: | Alta durabilidad | Tipo de placa: | Impresora de pantalla |
| Garantía: | 1 año | Grado automático: | Automático |
| Servicios para después de la venta: | Video o en línea | Tiempo de entrega: | 45 días |
| Condiciones de pago: | T/T | Detalles del paquete: | Paquete de madera contrachapada |
| Certificación: | CE SGS | ||
| Resaltar: | fully automatic screen printing machine,high speed screen printing machine,UV-LED screen printing machine |
||
Descripción de producto

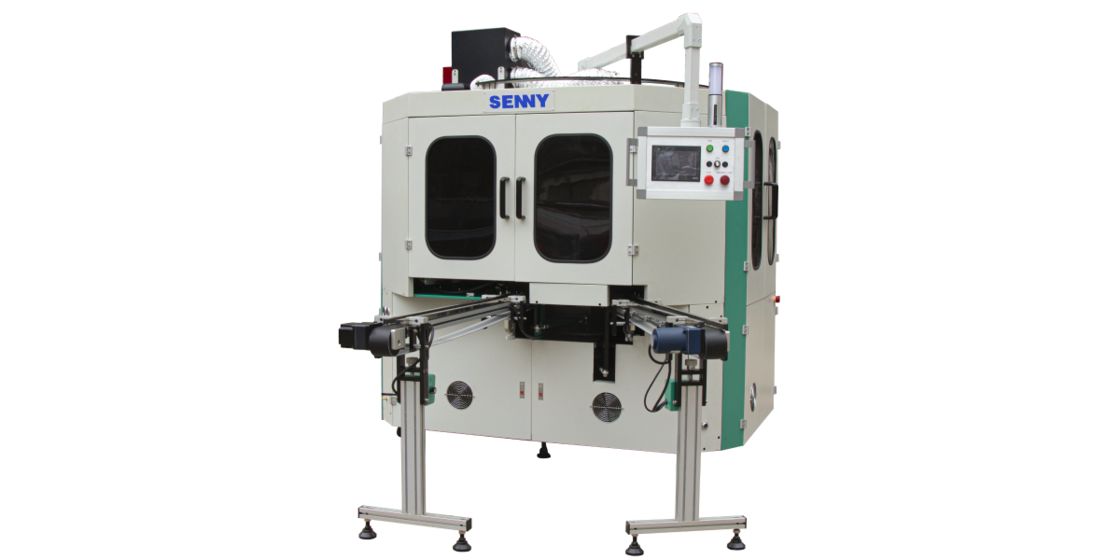

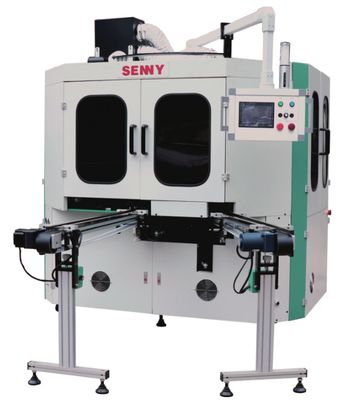

High Speed Fully Automatic Screen Printing Machine For Jars/Caps UV-LED System
Applications:
This machine is a multifunctional rotary multi-color screen printing machine. It is mainly used for printing on hoses, cans and bottle caps. It is characterized by simple operation, accurate positioning, high degree of automation and fast printing speed.
Features:
1. Few tools, simple operation, low maintenance cost and high accuracy. High precision of color-to-color registration.
2. Servo motor control, equipped with various monitoring systems to ensure the stability and safety of the machine when running at high speed.
3. According to the product characteristics, the machine can be equipped with various functions, such as hot stamping system and UV-LED system.
4. Machine size and color can be customized.
Technical Specification:
| Product diameter | Φ20-Φ80mm |
| Product height | 20-200mm |
| Printing Speed | Up to 3000pcs/hr |
| Max Printing Area | L250mmxW150mm |
| Max screen frame size | L450xW250mm |

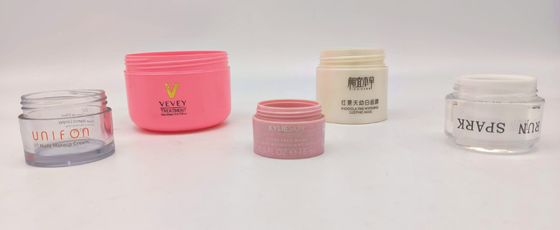

Printing samples
Exhibition
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
