3000 Pcs/Min Round/Flat UV Curing Machine
Datos del producto:
| Lugar de origen: | Dongguan China |
| Nombre de la marca: | SENNY |
| Certificación: | CE SGS |
| Número de modelo: | UV250RF |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 por ciento |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Paquete de madera contrachapada |
| Tiempo de entrega: | 15 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 10 pcs/mes |
|
Información detallada |
|||
| Tipo de placa: | Máquina de curado UV | Número de la máquina: | UV250RF |
|---|---|---|---|
| Servicios para después de la venta: | Video o en línea | Tiempo de entrega: | 15 días |
Descripción de producto

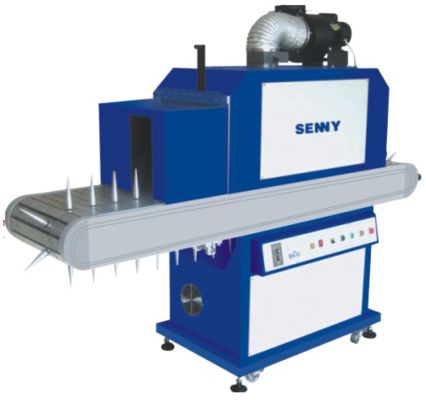

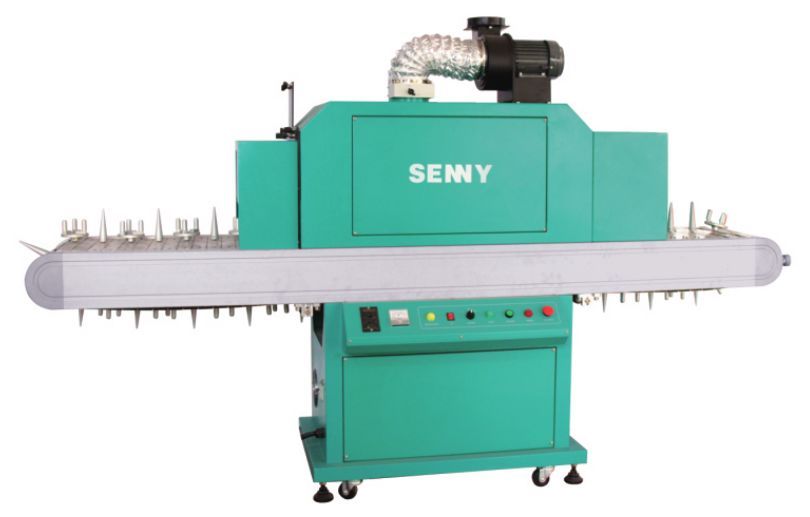

3000 Pcs/Min Round/Flat UV Curing Machine
Machine Feature
Core Working Principle: UV-Driven Rapid Curing Technology
The core working logic of a UV curing oven is to utilize ultraviolet (UV) light (mainly in UVC and UVB wavelength bands) generated by specialized UV lamps to irradiate UV-curable materials containing photoinitiators (such as UV inks, UV coatings, and UV adhesives), thereby triggering chemical polymerization reactions within the materials. The specific process is as follows: After the equipment is started, the UV lamps, supported by a stable power supply system, quickly generate high-intensity UV light; when the UV light penetrates the surface layer of the material and reaches the photoinitiator molecules, it activates the photoinitiators, causing them to decompose and produce free radicals or cations; these active particles then rapidly initiate cross-linking polymerization reactions between the resin monomers and oligomers in the material, completing the transformation from a liquid state to a solid state within seconds to minutes, and thus achieving the curing and forming of the material.
The entire process requires no high-temperature baking and only relies on UV energy to drive chemical reactions. This avoids issues such as material deformation and performance damage caused by high temperatures in traditional thermal curing processes. At the same time, it significantly shortens the curing time, perfectly aligning with the "high efficiency and precision" production requirements of modern industry.
Technical Parameters
| Machine Model | UV250RF |
|
Bottle-mouth diameter |
10-30mm |
| Max.printing Machine | Up to 3000 pcs/hr |
| Power | 5KW |
Printing your vision
About us:
Senny serves food, medicine, toys, cosmetics, daily chemicals, electronics, decorative products and other industries.Through the use of automatic printing technologies,such as screen printing,pad printing, hot stamping, labeling, offset printing and digital printing,it realizes printing high-quality exquisite graphics & texts on the surface of various shapes of products such as plastic, metal, glass and ceramics.
Since 1994, Senny has always adhered to the business philosophy of providing customers with high-quality products and services,exploiting the most advanced electrical control components and materials for R&D and manufacturing, and continuously improving the printing quality on various products to meet the increasingly extensive market requirements for high-quality packaging.
