6-Color 80pcs/Min Soft Tube CNC AutomatiC UV Printing Machine
Datos del producto:
| Lugar de origen: | Dongguan China |
| Nombre de la marca: | SENNY |
| Certificación: | CE SGS |
| Número de modelo: | SRS1669: las condiciones de los productos |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 por ciento |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Paquete de madera contrachapada |
| Tiempo de entrega: | 45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 10 pcs/mes |
|
Información detallada |
|||
| Nombre del modelo: | SRS1669: las condiciones de los productos | Color impreso: | 6 colores |
|---|---|---|---|
| Marca: | Senny | Garantía: | 1 año |
| Servicios Postventa: | Video o en línea | Tipo de placa: | impresora de la pantalla |
| Resaltar: | 6-color automatic UV printing machine,80pcs/min soft tube printer,CNC tube screen printing machine |
||
Descripción de producto

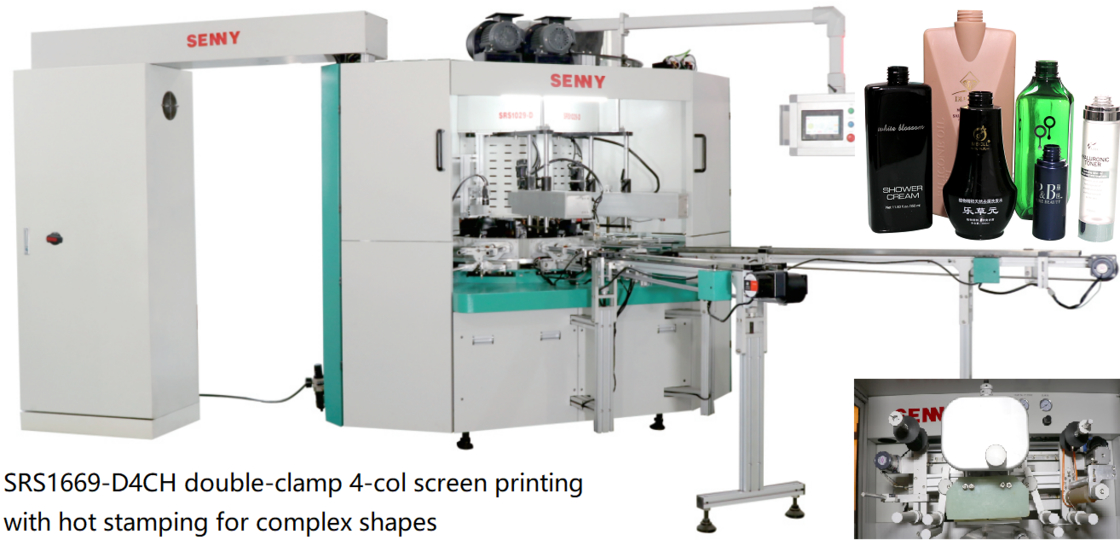

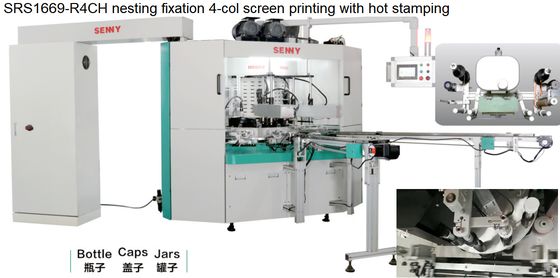

6-Color 80pcs/Min Soft Tube CNC AutomatiC UV Printing Machine
Machine Feature

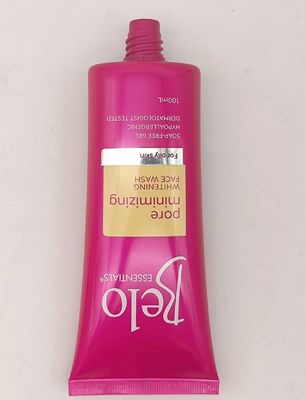

- This machine is applicable for decorating plastic soft tubes through multiple processes, including screen printing with UV inks of different colors, hot stamping, and varnishing.
- Featuring an integrated turntable design, the SRS1669 completes all printing functions using the same set of fixtures, achieving a printing accuracy of up to ±0.1 mm.
- Driven by a digitally controlled servo motor, the machine enables 360-degree printing of products. It also comes with remote management and service capabilities, aligning with Industry 4.0 standards.
- The SRS1669 utilizes electrical components from well-known brands, along with a PLC control system, an easy-to-operate touchscreen, and wireless tablet control, ensuring reliable performance.
Optional Configuration
- Unscrambling & feeding machine. Hot stamping function. Plasma surface treatment function.
- Visual registration function. LED-UV curing function. Finished product quality inspection function.
Technical Parameters
| Machine Model | SRS1669 |
| Printed Color | 6 |
| Work Station | 16 |
| Max.speed | Up to 80 pcs/min |
| Soft Tube Diameter | 15-75mm |
| Soft Tube Height | 60-220mm |
| Max.Printing Length | 220mm |
| Max.Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Printing your vision
About us:
Senny caters to a broad spectrum of industries, covering food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. Leveraging automated printing technologies—including screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—it produces high-quality, intricate graphics and text on the surfaces of products. These products boast diverse shapes and are crafted from materials like plastic, metal, glass, and ceramics.
