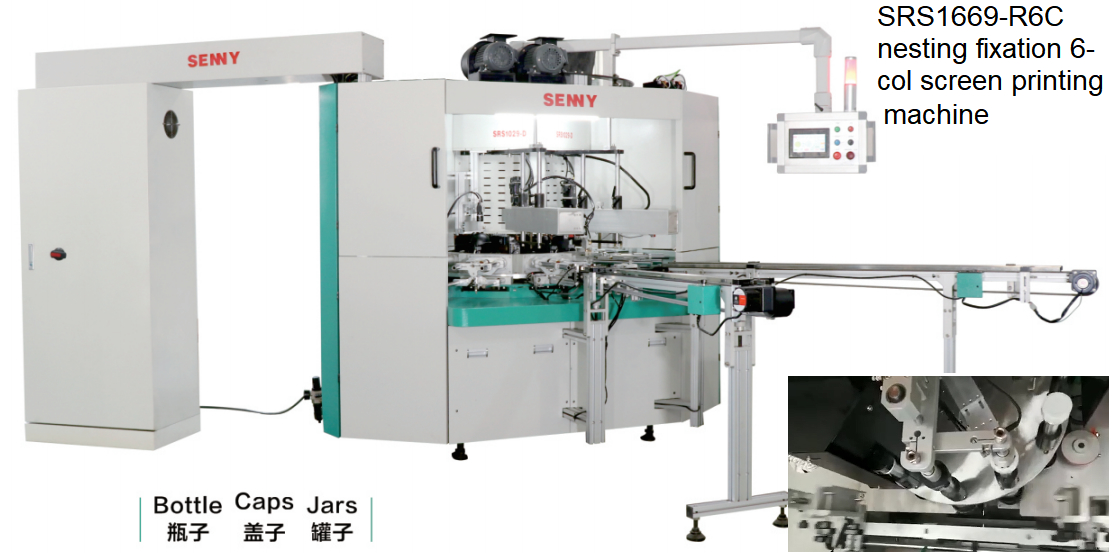

1-6 colors Glass / Metal CNC Bottle Screen Printer Serigraphic Works Up to 45pcs/min
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | SENNY |
| Certificación: | CE SGS |
| Número de modelo: | Se aplicará el procedimiento siguiente: |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 por ciento |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Paquete de madera contrachapada |
| Tiempo de entrega: | un mes |
| Condiciones de pago: | T/T o L/C |
| Capacidad de la fuente: | 15 PCS por año |
|
Información detallada |
|||
| Números del color: | 1-6 colores | Sistema de control: | El motor de las máquinas es el motor de las máquinas. |
|---|---|---|---|
| Grado automático: | Automático | Condición: | Nuevo |
| Velocidad de impresión: | 45-70pcs/min | Garantía: | 1 año |
| Detalles del paquete: | Paquete de madera contrachapada | Condiciones de pago: | T/T |
| Certificación: | CE | Capacidad de la fuente: | 5pcs/mes |
| Servicio de salas: | Video o en línea | ||
| Resaltar: | glass bottle screen printer,metal bottle screen printer,high-speed bottle screen printer |
||
Descripción de producto
1-6 colors Glass / Metal CNC Bottle Screen Printer Serigraphic Works Up to 45pcs/min
Glass/Metal Bottle CNC Screen Printer Serigraphic Works For Wine, Aerosol Can
Senny offers a variety of models for printing 1-6 colors in 360 degrees on the surface of glass/metal bottles/cups/jars in various shapes.
The series of printing presses are driven by digital control servo motors, and can integrate a variety of printing modes to print high-quality graphics and texts.
The fully automatic screen printer driven by CNC servo motor can print 360 degree on plastic, glass, metal bottles, jars, caps of various shapes (such as round, oval, triangle, square, pentagon, etc.) with different colors of UV inks.
The bottle is rotated to different workstations in one fixture to complete the functions of feeding, registration, surface treatment, multi-color printing, UV curing and discharging. The printing accuracy is high, the distance from printing pattern to bottom of the bottle is small, and it is not easy to damage the surface of the product.
UV curing can partially or fully use LED-UV curing system to save energy.
One can remove a screen printing and UV curing station and install a hot stamping system, thereby achieving the simultaneous execution of screen printing and hot stamping functions.
The final screen printing and UV curing station can be removed, and a finished-product visual inspection system installed in its place—this system automatically separates qualified from unqualified products after discharge.
The machine comes with a remote management function: as long as a network connection is available, it can remotely monitor machine faults and help resolve technical issues for customers.
Parameters
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing Stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Complex shapes(20-100mm) | Cylindrical(20-100mm) | ||||||
| Printing Speed | Up to 45pcs/min | |||||||
| Max Printing Area | L250mm X W160mm | |||||||
| Product Height | 250mm | |||||||
| Air Pressure | 6-7 bar | |||||||
| Power | 380v 50/60HZ | |||||||

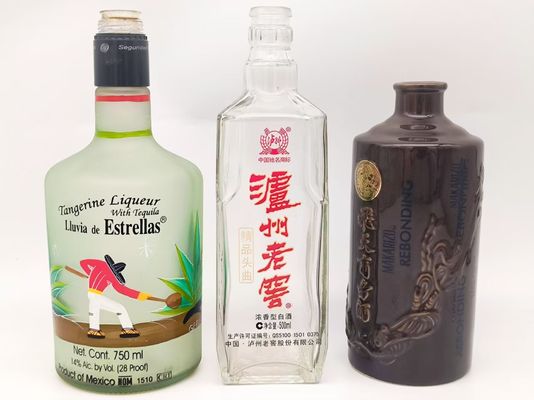

Printing sample
