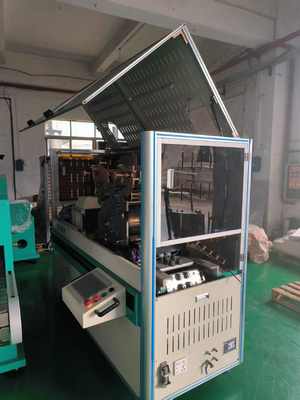

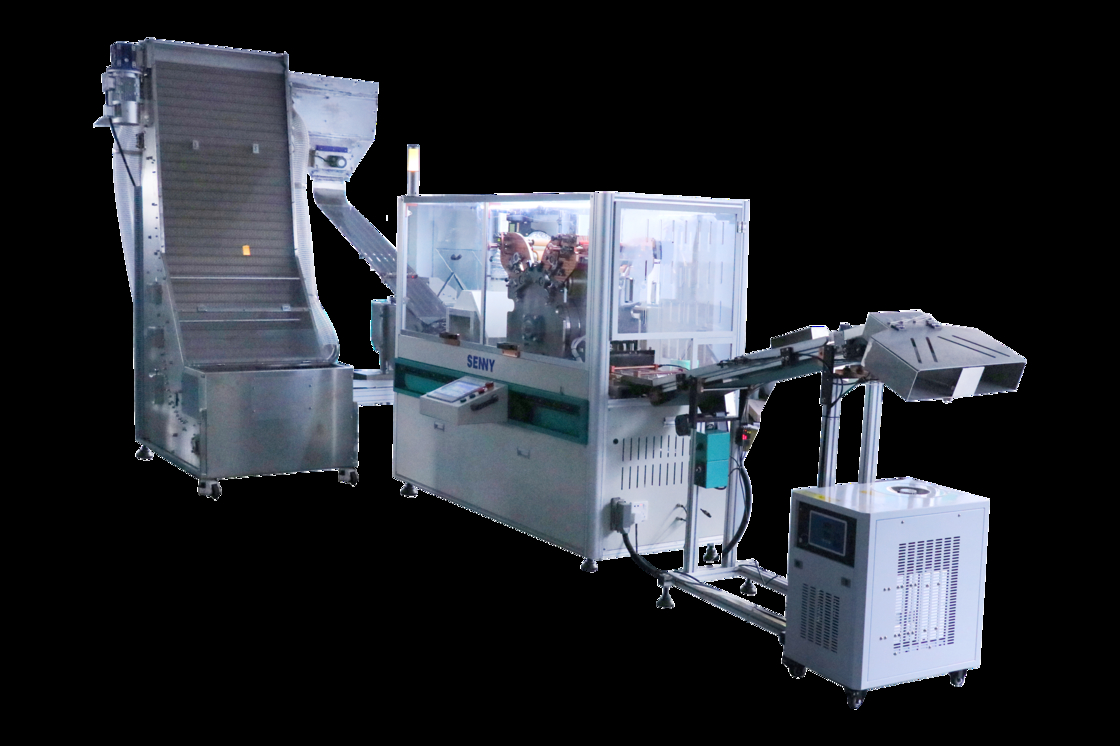

1-4 color 3200 pcs/min plastic cap high speed offset printing machine
Datos del producto:
| Lugar de origen: | Dongguan China |
| Nombre de la marca: | SENNY |
| Certificación: | CE SGS |
| Número de modelo: | Se incluyen los siguientes productos: |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 por ciento |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Paquete de madera contrachapada |
| Tiempo de entrega: | 45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 10 pcs/mes |
|
Información detallada |
|||
| Número de modelo: | Se incluyen los siguientes productos: | Color impreso: | 1-4 colores |
|---|---|---|---|
| Garantía: | 1 año | Marca: | Senny |
| Servicios Postventa: | Video o en línea | Tipo de placa: | impresora de la pantalla |
Descripción de producto
1-4 color 3200 pcs/min plastic cap high speed offset printing machine
Machine Feature

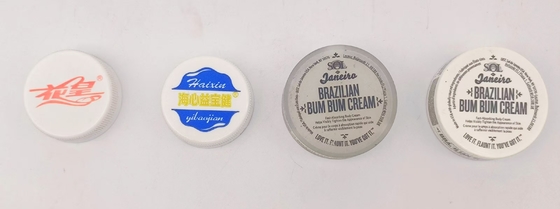

- This machine is suitable for UV ink printing of various colors on the top of plastic bottle caps.
- Printing speed can be adjusted freely to match the production capacity requirements of bottle caps.
- Multiple models are available, supporting 1-2 color or 1-4 color printing with precise registration.
- Equipped with a speed-adjustable inking system, it allows easy adjustment of ink layer thickness.
- Features electronically controlled reverse operation for simple and convenient machine adjustment.
- The removable console ensures easy operation.
- The machine adopts well-known brand electrical components, a user-friendly touch screen and PLC control system, delivering reliable performance.
- It can be connected to bottle cap making machines, slitting machines and quality inspection machines to form a complete production line.
Optional Configuration
- 2-Flame treating: Safer plasma treatment option is available.Plasma treatment producers no carbon dioxide or hot air emissions.
- UV-LED curing: Energy saving 70%.No ozone or hot air emissions.
Technical Parameters
| Machine Model | SOC4328 |
| Caps Diameter | 28-38mm |
| Printing Area | 24mm-34mm |
| Printing Speed | Up to 3200 Pcs/min |
| Printing Color | 2&4-Color |
| Gas Consumption | 150L/Min |
| Air Consumption | 600L/Min |
| Air | 5-7Bar |
| Power | 3p 380v 50/60Hz |
Printing your vision
About us:
Catering to industries ranging from food, medicine, toys, cosmetics, daily chemicals, electronics to decorative products, Senny applies multiple automatic printing technologies (screen printing, pad printing, hot stamping, labeling, offset printing, digital printing) to realize high-quality, exquisite graphic and text printing on product surfaces. These products have diverse shapes and are crafted from materials like plastic, metal, glass, and ceramics.
Since 1994, Senny has adhered firmly to its business principle: offering customers high-caliber products and services. It seeks out and adopts the most advanced electrical control components and materials for R&D and production processes, while continuously refining the printing quality of all types of products. In this way, Senny effectively satisfies the expanding and broader market requirements for high-quality packaging.
