1 Color UV Curing Fullly Automatic Screen Printer Machine For Mascara Tube Up To 3600Pcs/Hour
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | Senny |
| Certificación: | CE SGS |
| Número de modelo: | El número de unidades |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 por ciento |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Paquete de madera contrachapada |
| Tiempo de entrega: | un mes |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 10pcs/mes |
|
Información detallada |
|||
| Colores impresos: | 1 color | Velocidad: | Hasta 60 piezas/minuto |
|---|---|---|---|
| Durabilidad de impresión: | Alta durabilidad | Tipo de placa: | impresora de la pantalla |
| Garantía: | 1 año | Grado automático: | Automático |
| Condiciones de pago: | T/T | Detalles del paquete: | Paquete de madera contrachapada |
| Certificación: | CE | ||
Descripción de producto

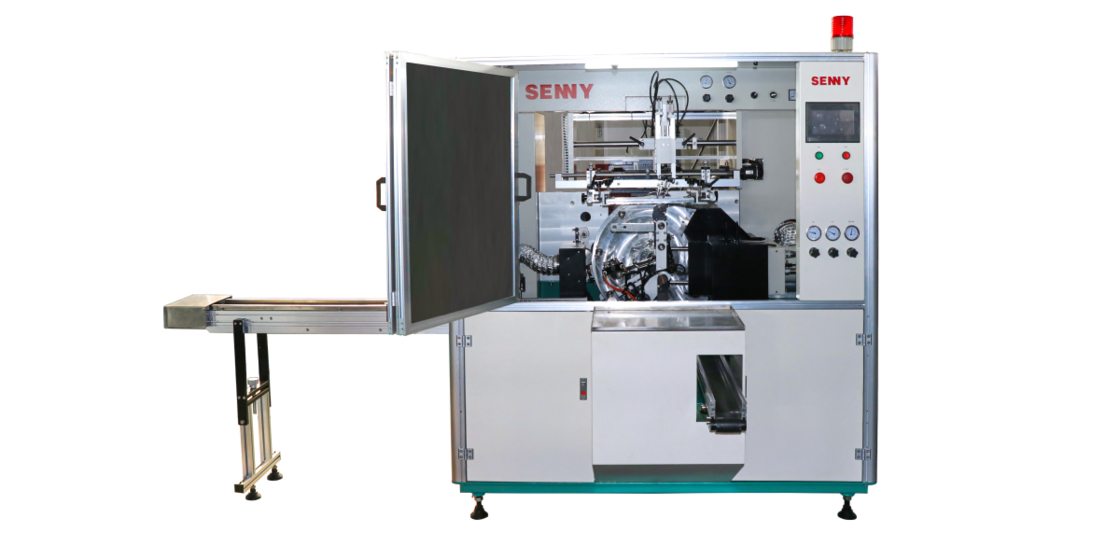

1 Color UV Curing Fullly Automatic Screen Printer Machine For Mascara Tube Up To 3600Pcs/Hour
Round Jar & Cap printing machine.pdf
Machine Application:
This machine is a new type of screen printing machine developed with the concept of "simple and efficient". It is designed for printing round, oval and square plastic containers (such as mascara tubes), ordinary glass bottles and other special products. It can be freely selected from single color to multi-color and can be freely combined. The whole machine adopts mechanical synchronization design with functions of surface treatment, automatic alignment, no product no printing, screen printing, LED curing, etc. to meet the diversity of the current product printing process, and optional full-automatic feeding system is also available.
It has the advantages of high degree of automation, easy to use, high precision, high reliability, low price, very simple operation and maintenance. It is widely used in cosmetic industry (e.g., printing on mascara tubes), alcohol industry, home decoration industry, food industry and so on.

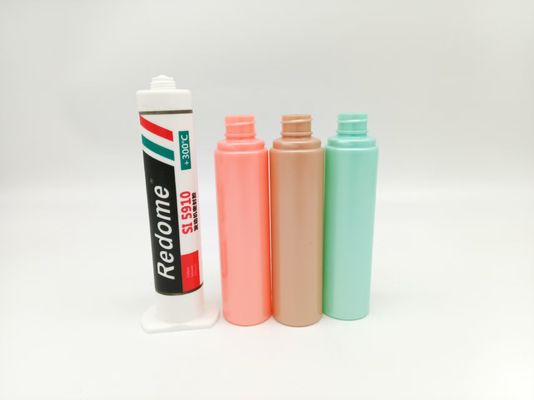

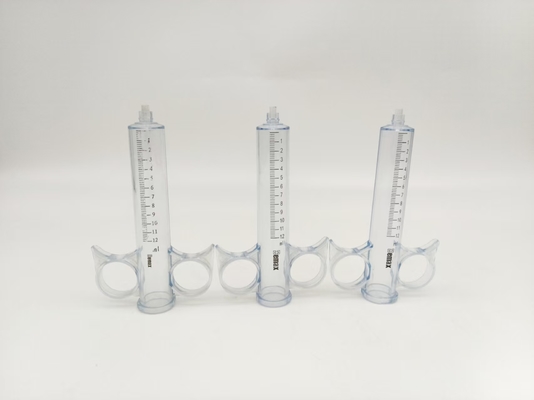

Printing sample
Technical specification:
| Max. speed | 3600Pcs/Hour |
| Max. printing area (L × W) | 300mm×100mm |
| Printing product diameter | Φ20~Φ100mm |
| Printing product height | 10~100mm |
| Power requirements (one) | 440V 3 P 60Hz 5KVA |
| Compressed air pressure | 6-7Bar 100L/Min |
| Gas Pressure | 0.8-2Bar |
| Main motor power | 0.75KVA |
| Gearbox ratio | 1:20 |
| LED lamp power | 1KVA |
| Machine size (L x W x H) | 1600mm×1200mm×1800mm |
| Approximate weight (including conveyor) | 1100kg |
- Plasma surface treatment (standard configuration is flame surface treatment)
- LED-UV curing (standard configuration is UV lamp curing).
UV curing device Hot stamping for small tube
