4 Colors Fully Automatic Screen Printing Machine For Glass Tubes 45pcs/Min
Datos del producto:
| Lugar de origen: | Dongguan Guangdong China |
| Nombre de la marca: | SENNY |
| Certificación: | CE SGS |
| Número de modelo: | Se aplicará el procedimiento siguiente: |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 por ciento |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Paquete de madera contrachapada |
| Tiempo de entrega: | un mes |
| Condiciones de pago: | T/T y LC |
| Capacidad de la fuente: | 10pcs /mes |
|
Información detallada |
|||
| Tipo de placa: | Impresora de pantalla | Estación: | 4 estación |
|---|---|---|---|
| Color de impresión: | 4 colores | Forma del producto: | Forma redonda |
| Cigüeña: | Un año | Después del servicio: | Apoyo técnico en línea o por video |
| Condiciones de pago: | T/T | Detalles del paquete: | Paquete de madera contrachapada |
| Certificación: | CE | ||
Descripción de producto

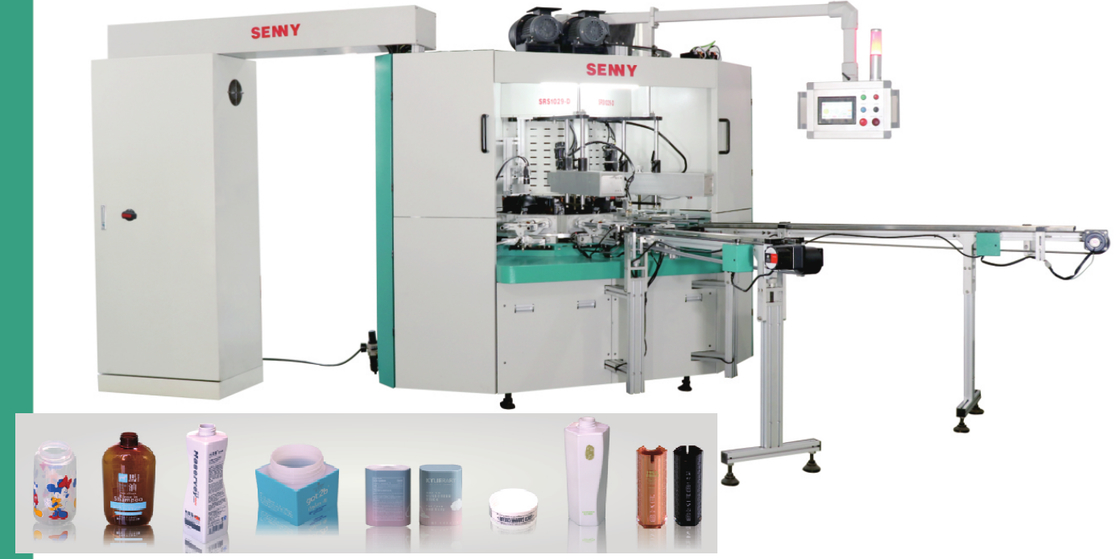

4 Colors Fully Automatic Screen Printing Machine For Glass Tubes 45pcs/Min
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
This machine is a multifunctional rotary multicolor screen printing machine. It is mainly used for printing patterns and text on irregular glass bottles, glass tubes, wine bottle caps, tubular products, lipsticks and flat-surfaced products. It features easy operation, accurate positioning, high automation and fast printing speed.
Features:
1.Fewer tooling requirements, easy operation, low maintenance costs, and high precision—with excellent colour-to-colour registration accuracy.
Adopts PLC control and touchscreen operation, equipped with multiple monitoring systems to ensure stable and safe machine operation even at high speeds.
2.Based on product characteristics, the machine can be configured with various functional modules, including:
Plasma treatment system
CCD positioning system
Hot-stamping system
UV-LED system
3.All key components are imported from Germany, the USA and Japan to guarantee machine quality and printing stability.
4.Supports three languages (Chinese, English and Spanish); additional languages can also be added to the PLC according to your native language.
Customized machine solutions are available for special-purpose products.

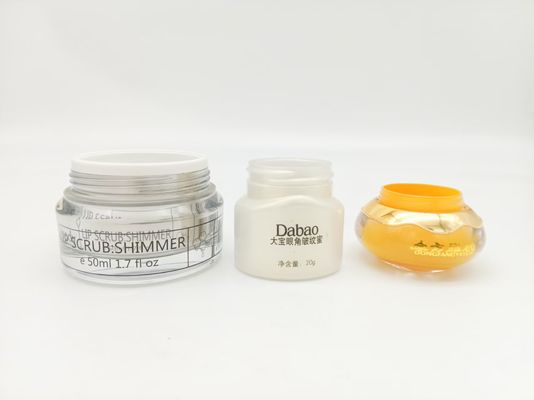

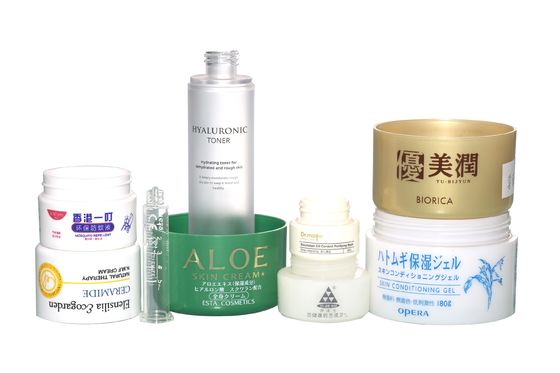

Printing samples
Optional Configuration
Exhibition:
Our factory
