Linear Modular Bottle Screen Printer For Plastic Bottles Jars 1-12 Colors
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | Senny |
| Certificación: | CE SGS |
| Número de modelo: | El número de la autoridad competente |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 set |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Paquete de madera contrachapada |
| Tiempo de entrega: | un mes |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 10pcs/mes |
|
Información detallada |
|||
| Grado automático: | Totalmente automático | Tipo de placa: | Impresora de pantalla |
|---|---|---|---|
| Colores impresos: | 1 a 12 | Durabilidad de impresión: | Alta durabilidad |
| Garantía: | 1 año | Servicio postventa: | Video o en línea |
| Condiciones de pago: | T/T | Detalles de empaquetado: | Paquete de madera contrachapada |
| Certificación: | CE | ||
Descripción de producto

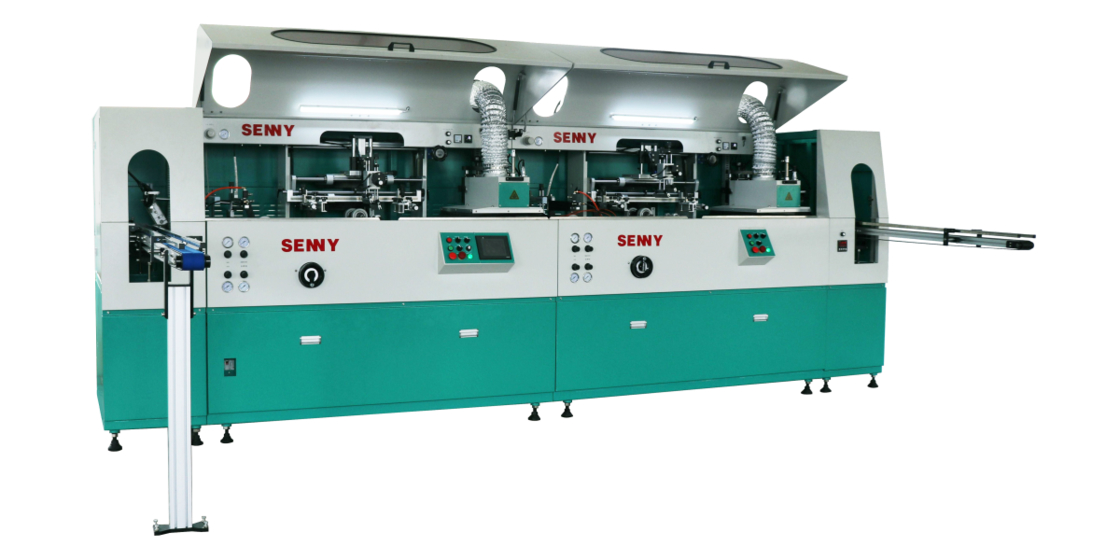

Linear Modular Bottle Screen Printer For Plastic Bottles Jars 1-12 Colors
1. Features:
SL1788: This automatic printer can print on cylindrical, oval and square plastic bottles with different colors of UV inks. With more than 1,000 units sold worldwide, it is the most popular machine on the market.
The machine has a modular construction, with each module including flame treatment, screen printing and UV curing functions, and linear connections for up to an 8-color integrated production line.
The machine can be connected to a foil stamping or labeling module for a multifunctional printing line with screen printing plus foil stamping or labeling, or to a visual product inspection module after printing to replace manual inspection.
The bottle feeding conveyor can be directly connected with bottle making equipment or with automatic bottle trimmer to replace manual bottle feeding. After the printing process, the discharge can be connected to the bagging machine to save labor.
2. Technical Specifications
| Machine running speed | Up to 85pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-160mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1190mm * W 1200mm * H 2000mm |
3. Applicable industries:
The machine is mainly used for cosmetics, daily chemicals, food, drugs, health care products, baby products, automotive products, cleaning products, alcohol, glass glue, toys, sporting goods and so on.
4. Scope of application:
The machine is suitable for single or multi-color screen printing on the surface of containers of various shapes such as round, oval, square and complex shapes. Container materials include plastic, glass and metal. Containers include jars, bottles, cups, lids and rigid tubes.
5. Main functions:
SL Series Machine: Core Functions (Simplified)
1. Feeding & Positioning
Speed-driven feeding
Manipulator vacuum directional feeding
Pre-positioning
2. Surface Treatment
Speed-controllable stepper motor-driven bottle surface treatment
Flame surface treatment
3. Screen Printing
Automatic screen printing
Container internal inflatable printing (pressure-adjustable)
Motorized print head lifting/lowering
4. UV Curing (Cylindrical Containers)
High-intensity US UV lamp curing
Optional LED-UV curing
Speed-adjustable motor rotation (for uniform curing)
5. Unloading & Conveying
Manipulator vacuum unloading
Unloading conveyor (speed-controllable)

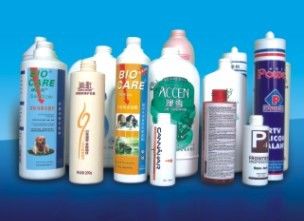

Printing sample
