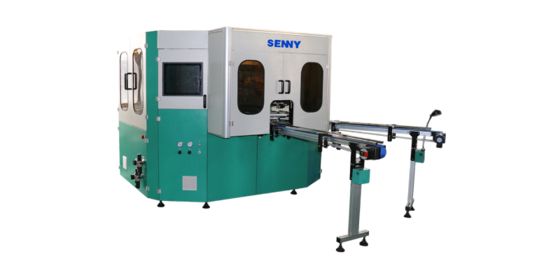

CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube
Datos del producto:
Lugar de origen: | Dongguan China |
Nombre de la marca: | SENNY |
Certificación: | CE SGS |
Número de modelo: | SRS829 |
Pago y Envío Términos:
Cantidad de orden mínima: | 1 por ciento |
---|---|
Precio: | negotiable |
Detalles de empaquetado: | Paquete de madera contrachapada |
Tiempo de entrega: | 45 días |
Condiciones de pago: | T/T |
Capacidad de la fuente: | 10 pcs/mes |
Información detallada |
|||
Modelo de máquina: | SRS829 | Color de impresión: | 2 colores |
---|---|---|---|
Marca: | Senny | Servicios Postventa: | Video o en línea |
Certificación: | CE SGS | Garantía: | 1 año |
Industrias aplicables: | Imprentas , Planta de fabricación , Uso doméstico , Industria , Empresa de publicidad | ||
Resaltar: | CNC automatic UV curing printing machine,2-color screen printing machine for bottles,45 Pcs/Min tube printing machine |
Descripción de producto
- Product Description 2-Color 45 Pcs/Min CNC Automatic UV Curing Printing Machine For Bottle And Tube
Machine Feature
-
The machine is suitable for screen printing various colors of UV ink,hot stamping and other decorations on bottles,jars,caps and other shapes of products,which are made of plastic,metal,glass and other materials.
-
The machine is specially developed for small container printing,with compact structure and small footprint.
-
The machine adopts an integrated turntable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as ± 0.1 mm ,and the product won't be scratched.
-
The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and services functions(industry 4.0)
Optional Configuration:
- LED-UV curing system.
- Hot stamping function.
- Finished product quality inspection function.
- Plasma surface treatment function.
- Visual registration function.
Technical Parameters:
Machine Model | SRS829 |
Work Station | 2 |
Diameter at 360 Degree | 13-60mm |
Container Height | 20-200mm |
Max.Printing Length | 200mm |
Max.Printing Height | 160mm |
Printing Speed | Up to 45 pcs/min |
Printing Sample

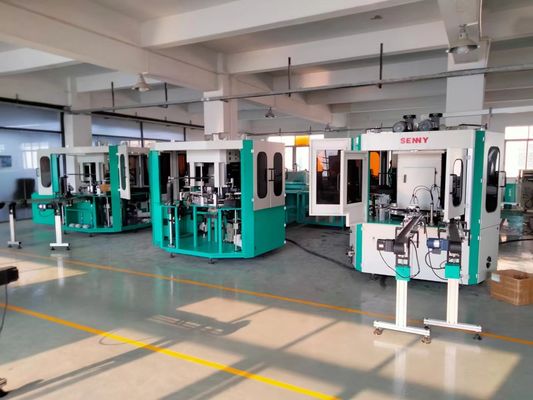

Our Factory and machines:
The differences between linear screen printing machine and CNC rotary screen printing machine:
- The linear printing machine has a faster printing speed than the rotary printing machine, but its printing precision is lower in comparison.
- The linear printing machine adopts a modular design: the more colors need to be printed, the larger the machine becomes, while the rotary printing machine is more space-saving.
- CNC printing machines are more conducive to remote management and service.
- All printing functions of a CNC printing machine are completed with the same set of fixtures, which can avoid wear and tear.
- CNC silk screen printing machines can adjust parameters such as the printing head via a wireless touchscreen, while linear printing machines require manual adjustment.
