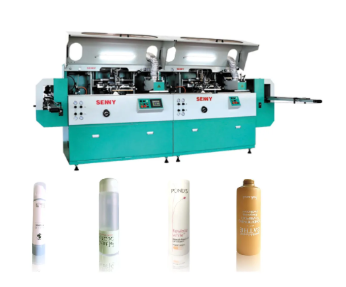

12 Color 5000pcs/Hr Tube Screen Printing Machine 250x200mm For Container
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | SENNY |
| Certificación: | CE SGS |
| Número de modelo: | SL1266-R |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 unidad |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | paquete de madera contrachapada |
| Tiempo de entrega: | un mes |
| Condiciones de pago: | T/T, LC/C |
| Capacidad de la fuente: | 10pcs/mes |
|
Información detallada |
Descripción de producto
his machine is specially designed for tube printing, customer can choose how many colors they want from 1 to 12. SL1266-R also can be configurated with Hot-stamping system, Labeling system, plasma system or UV-LED system.
Product features:
* Linear unit structure combination: option of adding up to a total of eight in-line colors.
* The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.
* In-feeding parts includes: in-feeding belt and machine hand for side-selection.
* The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.
* Flame treatment for round, elliptical and rectangle container
* Device for pre-positioning
* Second time positioning for printing.
* Electronic lift for squeegee.
* UV curing by rotating round container driven by stepper motor.
* Electronic UV system: device for adjusting light freely(LED UV curing system can be as a replacement)
* Elliptical and square container side-selection for auxiliary machine section
* Output parts: Machine hand for container standing up and belt
* Conform to CE standard.
Technical Specification:
| Round bottle diameter | Dia.20mm to Dia.100mm |
| Bottle height | 50mm to 280mm |
| Max.printing area | L250mmxW200mm |
| Max.Printing Speed | Up to 5000pcs/hr |
