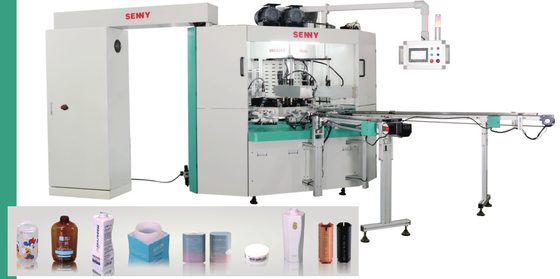

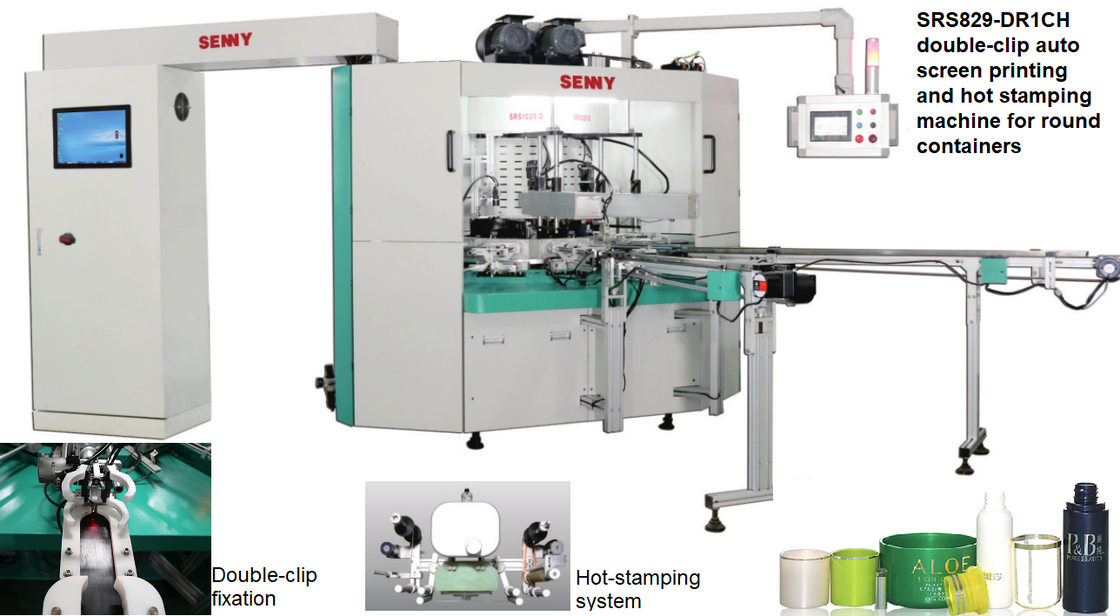

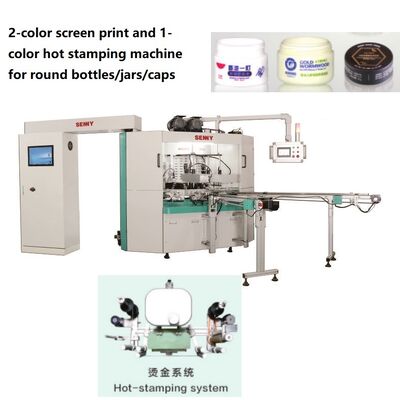

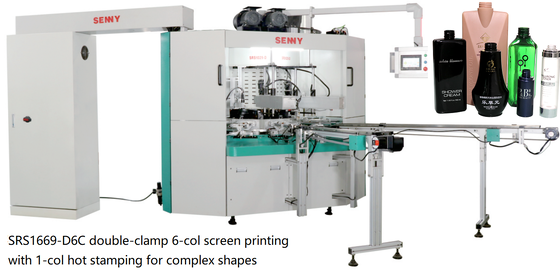

Mini Container CNC Automatic Printing Machine With Visual registrations functions
Datos del producto:
| Lugar de origen: | Dongguan Guangdong China |
| Nombre de la marca: | SENNY |
| Certificación: | CE SGS |
| Número de modelo: | SR829 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | paquete de madera contrachapada |
| Tiempo de entrega: | un mes |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 10pcs /mes |
|
Información detallada |
|||
| Peso: | 300KG | Tamaño de embalaje: | 1400 mm Ancho: 1300 mm Alto: 2150 mm |
|---|---|---|---|
| tipo de tinta: | Tintas UV a base de agua, base solvente | Tamaño de la máquina: | 1800mm*1200mm*1550mm |
| Presión de aire: | 0.4 ~ 0.6MPA | Estructura: | Servoimpresora |
| Fuerza: | 380V 16KW | Fuente de alimentación: | 220V/50Hz |
Descripción de producto
Machine Features
The machine is suitable for screen printing various colors of UV ink, hot stamping and other decorations on bottles,jars,caps and other materials.
The machine is specially developed for small container printing,with conpact structure and small footprint.
The machine adopts an intergrated turnable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as +/- 0.1mm,and the product won't be scratched.
The machine is driven by digital control servo motor to realize 360-degree printing of productsquipped with remote management and service functions (Industry 4.0).
The machine adopts well-known brand electrical components, PLC control system, easy-to-usetouch screen and wireless tablet operation, with reliable performance.
Optional Configuration
Plasma surface treatment function
Finished product quality inspection function.
LED-UV curing system
Hot stamping function
Visual registration function.
Technical Parameters
MachineModel SRS829 SRS1039 SRS1249 SR1669
Work Station 8 10 12 16
Printing Speed Up to 45pcs/min Up to 45pcs/min Up to 45pcs/min Up to 45pcs/min
Diameter at 360 Degree 13-60mm 13-60mm 13-60mm 13-60mm
Container Heighta 20-200mm 20-200mm 20-200mm 20-200mm
Max Printing Length 200mm 200mm 200mm 200m
Max Printing Height 160mm 160mm 160mm 160mm
Printing Samples
