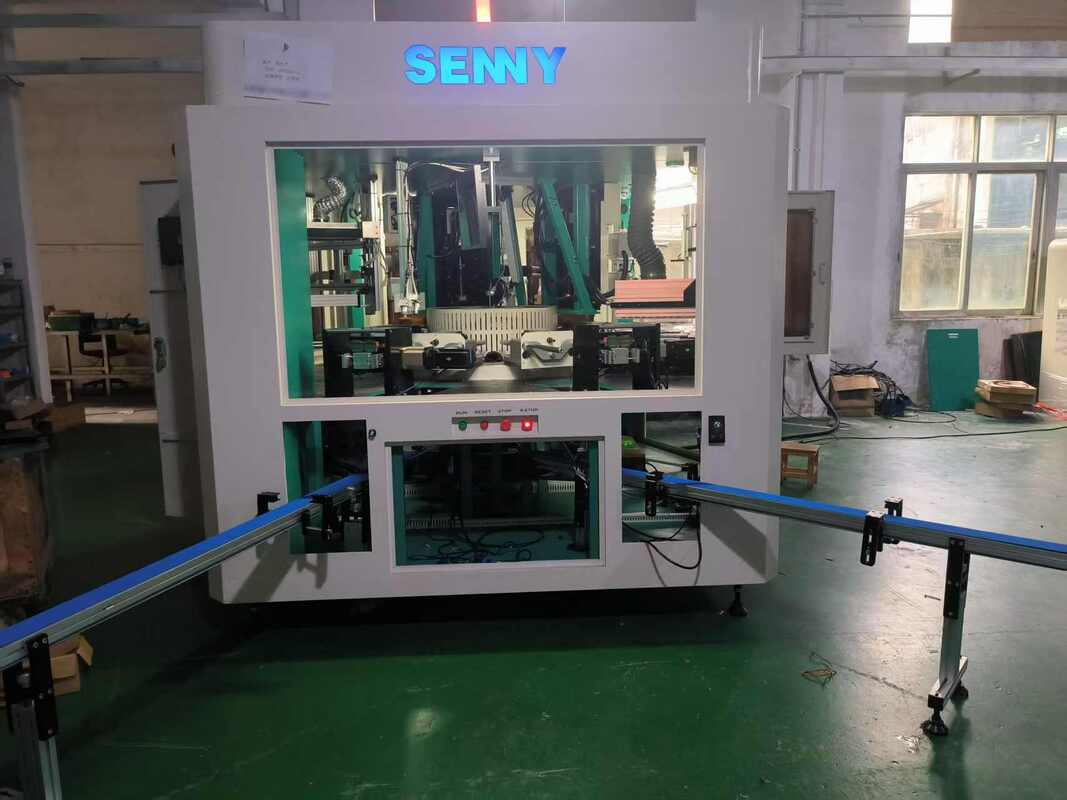

5 Color CNC Bottle Screen Printer Full Servo Container Screen Printer 60pcs/Min
Datos del producto:
| Lugar de origen: | Dongguan China |
| Nombre de la marca: | SENNY |
| Certificación: | CE SGS |
| Número de modelo: | SRS588 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 unidad |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | paquete de madera contrachapada |
| Tiempo de entrega: | 45 dias |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 10pcs /mes |
|
Información detallada |
Descripción de producto
5 Color CNC Bottle Screen Printer Full Servo Container Screen Printer 60pcs/Min
Production speed and number of colours are indicators of machine performance.
High performance machines must also feature:
• Capabilities for loading and orientating complex shaped jars or bottles,
• Full CNC-control for maximising printing areas on complex shaped items,
• Quick change features and machine pre-setting for shortening changeover times,
• ln-line print inspection for inspecting each item.
Machine Features
Each fixture is driven by its own servomotor, an essential requirement for CNC-control of the printing movements.
Quick change fixtures reduce changeover times.
Each machine features a solidly-built welded frame, ensuring smooth, vibration free operation even at high printing speeds. The surfaces that are crucial for ensuring that screens are parallel with the fixtures are precision machined.
Optional Configuration
-
Product lying flat feeding and discharging function.
-
Plasma surface treatment function.
-
Hot stamping function.
-
Bottle bottom visual registration function.
-
Bottle body visual registration function.
-
LED-UV curing system.
-
Finished product quality inspection function
Technical Parameters
- Work Station: 12
- Printing Speed: Up to 60pcs/min
- Diameter at 360 Degree: 13–100mm
- Bottle Height: 20–320mm
- Printing Length: 300mm
- Printing Height: 200mm
- Printing Accuracy: ±0.1mm
This CNC rotary machine can be 2 to 6 colors.
Screen printing UV curing
Applications
SRS588 CNC Container Automatic UV Screen Printing Machine is an automatic UV screen printing machine for containers. The printing scope is very wide and it can be used for screen printing of various containers such as round bottles, flat cans, square jars and irregularly shaped containers, etc.
